Setup Netopia\Motorola Router for Static IP Traffic

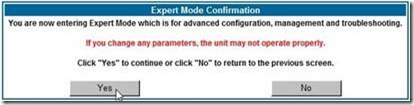

The following will show you how to configure a Netopia\Motorola Router to Authenticate and pass through Static IP Traffic into your local network. Follow the initial “Quick Start” to configure and test the Username and Password at that point it will still grab a random DHCP address. clip_image002 Select “Expert Mode” and select “Yes” clip_image004clip_image006 Select “Configure”> Select “LAN”> And enter in your first Static IP Select “Submit” clip_image008 clip_image010 clip_image012 Select “DHCP” and revise to Statics that are not assigned or Disable Select “Submit” clip_image014 clip_image016 Select “Wan” on the left Menu> Select “PPP overEthernet vcc1” clip_image018 clip_image020 Uncheck “Address Mapping (NAT)” Select “Submit” clip_image022 On top select “Security”> Select “Stateful Inspection” clip_image023 clip_image025 Select “Exposed Addresses” clip_image027 Select “Add”> Enter in the address range you want exposed Select “Submit” clip_image029 clip_image031 Click on the Yellow Warning Icon clip_image033 Select “Save and Restart” clip_image034
