Friday, August 11, 2017

DNS Made Easy how to use DynSite Dynamic DNS application


Log onto your DNS Made easy to the proper domain and start adding your record

Enter in the name and an IP. You can use any IP to confirm it is really working such as 8.8.8.8 or 70.70.70.70 the most important part is to put in your DNS password (whatever) and enable Dynamic DNS as shown below:

clip_image002

NOTE: If you need it online “NOW” and can’t wait for the default “1800 TTL” for the record to change from 8.8.8.8 or any other incorrect address then use the real IP address. If you use a fake IP you probably want to browse to it first to make sure you don’t redirect people to a questionable or malicious site Winking smile

Once you hit submit it create a DNS ID. You will need that DNS ID and Password later for dynsite setup:

clip_image004

Download DynSite DNS app from the link below.

http://noeld.com/dynsite.asp

Please note: This is not the most modern looking GUI or application, but it works and is endorsed by DNSMadeEasy and the cost is minimal.

Install the program on the server that needs dynamic DNS or another server in that network that is almost always online, if all systems have the same outgoing IP.

Once you complete the base OS installation it will begin the Account Assistant as shown below:

clip_image006

Select “Dynamic DNS services” as shown below:

clip_image008

Next and select “DNS Made Easy” and shown below:

clip_image010

Next and now enter in the name of your DNS record it can be named anything but to make it easier for someone to follow in my example for dyndnsexample.mydomain.com I used “dyndbnsexample” below:

clip_image012

Here is where you will input the code that DNS Made Easy created for you and enter in the password you assigned. In my example below “whatever” is the password that is starred out:
clip_image014

Check mark “I want to configure a host for this account” and select Next

Now put in your Screen name, Host name, and domain such as mydomain.com and confirm the FQDN:

clip_image016

Select Next and you will receive the following warning and select “OK”

clip_image018

Now you need to put in your Record ID. This is that same code that DNS Made Easy generated for you and select OK as shown below:

clip_image020

Click “Next” and “Finish to completed the Account Assistant

clip_image022 Next to Finish

You can than open the DynSite console and view the status:

clip_image024

If you do a refresh on your DNS Made Easy DNS page you will see it update the IP from 70.70.70.70 to the current External IP address to confirm all is correct and running.

Note: You will need to activate DynSite within 30 DAYS it is not freeware!

Wednesday, July 26, 2017

Mitel 5000 reboot procedure

Mitel main phone system reboot


Middle Button once

Down arrow to “System Menu”

Middle button to select “System Menu”

Down arrow to “Reboot”

Middle button to select “Reboot”

Down arrow to “Yes”

Middle button to select “Yes”

Reboot usually takes less than 5 minutes

If you accidently power it off instead of reboot to power it back on select the middle button

Office 365 Change default save from OneDrive in Word and Excel

Open Word or Excel

Open a blank document

Click on “File”, “Options”, “Save”, and check “Save to Computer by default” as shown below and click “OK” at the bottom of that window to save the setting:

clip_image001

If you have an alternate location you may want to change the “Default local file location as well” such as a network my documents redirected path mapping.

clip_image001[5]

Now the next time you click “save as” you will notice it now goes to “This PC” rather than OneDrive:


Wednesday, June 28, 2017

Enabling Macs on Trend Worry Free Console 9.5

Here is the article from Trend on the original process some settings are not the same such as the after installation check of the registry to make sure it installed correctly:

https://success.trendmicro.com/solution/1056560

Here is the most important parts left out you need to know.

The Trend Micro Worry Free for Macs console “Plug in” is a completely different console NO settings are shared between the original console and the Plug. So you will have to set up all of the settings for Mac from scratch.

Install the latest Java on your Trend Micro management server before attempting to install the Plug In:

clip_image002

Once you install Java and enable the Plug in you will download the “Trend Micro Security (for Mac)” Plug in:

clip_image004

Once the Plug in completes the download you install the Plug in on the server. (this is not the workstation installer)

clip_image006

After installation you manage the Macs exclusively using an alternate console by clicking on “Manage Program” under the “Preferences” and “Plug-Ins”:

clip_image008

You will see the following this is your separate Mac Management Console with completely separate settings:

clip_image010

Note the License error above you many have to open the license console and select “Update Information” for it to sync as shown below:

clip_image012

The installation paths for the Mac Agents are under the Mac “Administration” “Agent Setup Files”

clip_image014

Reminder this Mac console is completely separate from the main console so you will have to modify and maintain the Mac console “Plug in” and settings as necessary.

I would strongly recommend you review the Administration guides found here:

http://docs.trendmicro.com/en-us/enterprise/trend-micro-security-(for-mac).aspx

Tuesday, May 30, 2017

Trend Micro Worry Free client systems are unresponsive after Windows 10 defender update on 5/2017 - KB890830

Since this is a Windows Defender update it cannot be easily rolled back. User experience slowness that makes the PC appear to be not working as even the simplest tasks take significant amounts of time to complete. It is like your PC is working but at 1% of its speed.

The problem is that Windows Defender update severely conflicts with Trend Micro Worry Free Agents using a local management server. The Worry Free Saas product appears unaffected by the issue. Trend Micro support is aware of the problem and working on a fix to Microsoft’s update. In the meantime the temporary fix is to disable Windows Defender active scanning following the steps below.

Note: You can uninstall Trend Worry Free Agent however then you are leaving your systems vulnerable. Using the server console to remove the Trend agent will not work effectively and you will have to manually remove the agent on each system which could take 30 minutes or more per system due to the performance issues.

Caution: it’s the registry you break it you bought it…

On the impacted Windows 10 workstations open regedit:

HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows Defender

New, click DWORD (32-bit) value and then name it as DisableAntiSpyware.

Set Value at 1 and restart the system

That will disable Windows defender and should keep it from restarting itself and stop the conflict with Trend Agent.

Reboot the system and test

Note: this can be done as well via GPO to stop further deployment issues. however it will take a significant amount of time on systems already effected.

Trend Micro Agents should work fine in normal mode with real time scanning enabled once this fix is deployed. If you have not already I would recommend installing Trend Worry Free 9 Service Pack 3 as well.

Wednesday, March 1, 2017

365 One Drive Business Setting up Synchronization

Create a separate One Drive “Cloud Administrator” account and assign a 365 license to the account.

From the file server open Http://portal.office.com and log on using the Cloud Administrator account

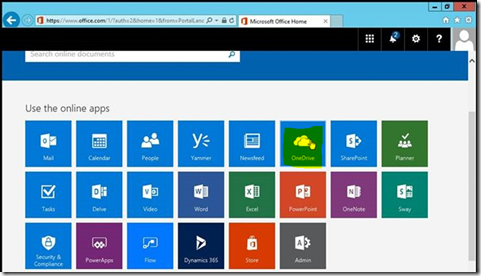

Once logged on select One Drive as shown below:

clip_image002

Once it sets up your One Drive you can select “Your OneDrive is ready”

clip_image004

In the OneDrive Menu select Sync as shown below:

clip_image006

Click Allow this website to open an app:

clip_image008

It will pop up the following “Getting Ready to sync…” if nothing happens or if you get prompted that you need an app. Then it does not have the proper version already on the system you may have to click on “Get the latest version of OneDrive as:

clip_image010

You should then see the following to enter in your Cloud Admin account and sign in:

clip_image012

You will get prompted with a password logon for Office 365 which will require that same account Sign in.

Then you will see the following which we will redirect to the folder we want to sync by selecting “Change Location”

clip_image014

In this case I will go to the D:\ServerFolders\Company Share and select that folder. Now here is the interesting part it will not sync the “Company” Folder it will create it’s own subfolder.

clip_image016

It will then revert back to the “This is your OneDrive folder” screen to which you click “Next” as shown below:

clip_image017

Check Sync all files and folders and note the path it created and select Next as shown below:

clip_image019

Your OneDrive is now ready for you to open:

clip_image021

Now If you go to the local path you will see the following:

clip_image023

Anything in that OneDrive… folder will be automatically synchronized.

Note: the Green checkmark means the data is syncing to the cloud OneDrive

If you right click on the OneDrive cloud icon in the bottom right corner of you system you will see the following options including View Online:

clip_image025

After you select “View online” and enter in the credentials you will see the data is matching in both locations. Here is a populated example of what the OneDrive will look like:

clip_image027

Note: I would suggest you keep your files within subfolders of the OneDrive share to make permissions administration easier to maintain.

Note: You cannot have a directory called “Forms” in your OneDrive folder structure or it will not synchronize it. “Forms” directory is reserved for OneDrive configuration

Note: If you change the password of this account you will have to change it in the configuration to keep sync enabled. (see “Settings” 2 images above)

Caution: Local permissions and Cloud permissions are maintained separately in most cases. See blog on permissions here: http://koppihle3.blogspot.com/2017/03/365-one-drive-business-share-permissions.html

365 One Drive Business Share Permissions

Create a separate One Drive “Cloud Administrator” account and assign a 365 license to the account and setup the One Drive Share sync. Once that is done to edit cloud permissions:

From the file server open Http://portal.office.com and log on using the “Cloud Administrator” account

Once logged on select One Drive as shown below:


It will open your One Drive Business share:

clip_image004

To change permissions, select the check box to the left of the file or folder as shown below:

clip_image006

Right Click and select Details as shown below:

clip_image008

You will notice on the right side the file details scroll down to “Sharing” as shown below:

clip_image010

That will expand to show you the file or folder permissions from there you can add people, stop sharing to that person, or revise read/write permissions as shown below:

clip_image012

CAUTION: These are One Drive share permissions ONLY this will not impact your share permissions internally on the file share those permissions should be modified as well.

Note: I would recommend using folders and not have files in the root directory of your synced folder. That will make permissions administration editing easier.

The users will then see the data on their 365 accounts by going to the “Shared with me” folder as shown below:

clip_image014

Veeam backup fails with “Virtual Disk is not a multiple of” error

Depending on what other backup, build, or restoration solutions you have in place you may see a “virtual disk is not a multiple of…” error when backing up with Veeam.

The error sounds quite ominous like a major disk issue on the host. The good news is it ends up it is a quick fix on the VM using the GUI interface.

Open up the VM settings and resize the virtual drive from the weird size such as 79.435346435 GB to 80GB and the same for the secondary or other disks for example 250.45346324GB to 251GB. Then access the VM and expanded the drives via the OS.

If it is already a “normal” drive size try going up another drive size for example 80GB to 81GB and expand the drive in the OS.

Then test the backup job.

Credit: Veeam KB article https://www.veeam.com/kb1848

Thunderbird to Office Migration

There are several tools out there to migrate your email from Thunderbird to PST that you can then import into Office. Many of them are pay per license. I would stay clear of the freeware version. One pay version that I am familiar with is:

http://www.thunderbirdtooutlook.com/description/

It does a decent job of exporting/importing.

Note: In the case of my imports there was a lot of malware hidden in the old Thunderbird email that my Antivirus found and quarantined as it was exporting. So I would recommend you make sure your Antivirus is online and up to date.

Importing contacts however from Thunderbird can be time consuming due to the fact that Thunderbird and Office use different headers for the categories. Once I exported from Thunderbird to a CSV file I edit it with excel and changed the headers to match what Office is expecting. That avoids manually mapping during the import process. I was then able to cut and paste the header to all the exports and import them into Office seamlessly. Here is the header I used you can cut and paste into as the first line of you CSV. hopefully they work for you:

Note: You will be overwriting the first line of the csv with this so please make a backup copy first.

First Name,Last Name,Display Name,Nickname,E-mail Address,Secondary Email,Screen Name,Business Phone,Home Phone,Fax Number,Pager Number,Mobile Phone,Home Street,Home Street 2,Home City,Home State,Home Postal Code,Home Country,Business Street,Business Street 2,Business City,Business State,Business Postal Code,Business Country,Job Title,Department,Company,Web Page 1,Web Page 2,Birth Year,Birth Month,Birth Day,Custom 1,Custom 2,Custom 3,Custom 4,Notes

Caution: If the import is done incorrectly you can import a bunch of junk into your contact list so I would recommend importing “offline” to make sure it is all good before connecting online. Worse case you wipe that local email profile and start over.

“you break it you bought it…”

Office 365 Configuration XML made simple

Creating the configuration XML can be a time consuming and multiple test and fail process before your finally get what you want for that ONE deployment.

Luckily now there is a tool for that and it is located here:
https://officedev.github.io/Office-IT-Pro-Deployment-Scripts/XmlEditor.html

This tool will create a complex XML file for you allowing you to select version, excluded programs, remove products, configuration manager support, custom options, update options, silent mode, EULA, logging and even includes templates and an installation toolkit.

Credit: Jason Powell

Macro Exploits–Trusted Locations what you need to know

Malicious macro exploits have been a security issue for Office since the day macros were introduced. There are lots of legitimate work flow macros, so you cannot by default disable all macros in all Office programs. In the past you could create trusted macro locations within your network or system to add a layer of protection and prevention from malicious macros running.

GPO- Configuration/Administrative Templates/Microsoft Office XXX 20XX/Application Settings/Security/Trust Center/Trusted Locations

The latest threat though, with the added use of cloud locations, makes that harder to control and disable external document macros. While there is now an option to “Block macros from running in Office files from the Internet” unless users save the “trusted” cloud documents to a local path, designated as trusted in the GPO or system, then it may block legitimate work macros as well. So you will need to plan accordingly and remind the users “what to” and “what not to” open and where.

Knowing the average user is likely to click first on an attachment and ask long after the damage is done. The latest and worst macro exploit now triggers the newest malware craze “ransomware” such as Cerber. These two have been recently combined into yet another form of malware to thrash your data and systems.

The latest spam and phishing emails with those malicious attachments are currently concentrating on Office 365 users due to the fact that they know they have the Office suite to open the attachment macros and trigger the malware. The ransomware depends on the user to open the exploiting Macros by having end users “Enable Editing” and “Enabling Content” in the attachment. Here is an example of what one looks like:

clip_image002

The Cerber ransomware has been around since around March, but the Office 365 and cloud based targeting only just begun recently. Victims once they trigger the macro and are infected will see a ransomware note and the malware will also read aloud a note stating that their files have been encrypted.

Cerber uses AES-256 encryption and the victims are asked to pay about $800 U.S. dollars' worth in Bitcoin. If you don’t have a recent backup your only recovery option may be to pay the ransom if critical data is encrypted. Of course there is no guarantee they will honor the payment agreement.

If you are not using additional safeguards outside of what is provided by Microsoft, you could be at risk. I recommend you implement the following to help prevent ransomware from infecting your system:

  • Spam filtering
  • Firewalls
  • DNS filtering (such as OpenDNS)
  • Content filtering
  • Antivirus/antimalware
  • Group Policies to manage trusted locations
  • Employee Policies that outline how to open external documents
  • Backups (potentially ones that are not constantly connected to the network)

Office 365 increased email filtering

With Office 365 there are many features you can enable to reduce additional spam and malware. Below are a few of the higher level settings that can compliment your existing email filtering. On your Office 365 Console open the “Exchange Admin Center” select “protection”, select “malware filter” and edit (pencil) your Default rule as shown below:

clip_image002

The rule above is a more severe setting that deletes the full email with known potential malware type extensions. You can however make it more end user admin friendly by using the other settings to strip the attachment instead and alert the reciever that is was removed.

Note: Don’t forget to hit “Save” in the bottom right hand corner

In the same “protection” section select “connection filter” and “enable safe list” to allow Office 365 known safe senders as shown below:

clip_image004

Note: Don’t forget to hit “Save” in the bottom right hand corner

In the same “protection” section select “spam filter” and updated your “allow list” with senders and domains to allow known safe senders as shown below:

clip_image006

Note: Don’t forget to hit “Save” in the bottom right hand corner

In the same “spam filter” select “international spam” and select every country and language you DO NOT want to receive email from. If you are a business in the midwest USA and have no international clients or vendors nor want any then lock it down to english and USA as shown below:

clip_image008

Note: Don’t forget to hit “Save” in the bottom right hand corner

In the same “outbound spam” select “outbound spam preferences”select send notificaton and put in an user or distribution group email address so you will know spam is going out ASAP as shown below:

clip_image010

Note: Don’t forget to hit “Save” in the bottom right hand corner
