FileZilla secure FTP setup:

https://filezilla-project.org/download.php?type=server

Install using defaults then start customizing:
clip_image002

Internal IP Address:
clip_image004

You can specify what IP’s are blocked or allowed:
clip_image006

Use a custom port range so you can specify the range in firewall and the external IP:
clip_image008
Review buffer settings:
clip_image010
Specify admin interface port:
clip_image012

Configure logging:
clip_image014
Set any speed limits:
clip_image016

Generate a new Certificate and point Private Key and Certificate file to the same certificate.crt:
clip_image018

Note: external certificates would not work properly even with format changes

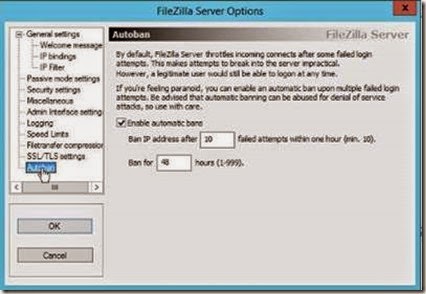

Enable automatic bans and customize settings as necessary:

clip_image020

Configure your External Firewall to port forward and allow traffic:

clip_image021

Configure the Firewall Inbound and Outbound Rules on the FileZilla Server:

clip_image023

clip_image025

Name rules SFTP IN and SFTP OUT:
clip_image027

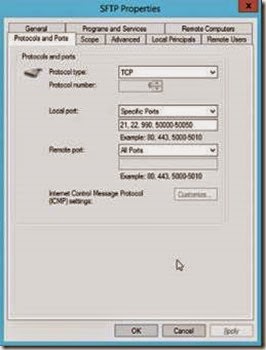

Ports 21,22,990 and the port range specified earlier:
clip_image029
Setup the users and groups:
clip_image030
clip_image032
Setup shared folders:
clip_image034

Now you are ready to test
